Plant Pathology Imaging and analysis system
Helical Gear System
The helical gear system facilitates the independent circular motion of two beds at any single instance—namely, the examination bed, precisely rotated using a Nema 17 stepper motor, and the secondary bed (LED bed), which undergoes faster rotation driven by an N20 motor.
Lighting System
The system includes a novel lighting setup on a rotatable secondary bed, providing ambient lighting and antiglare properties.The LED strip is programmable to provide different colors and intensity. It is fixed to a secondary bed that is rotated at a higher speed by an N20 motor using a helical gear.

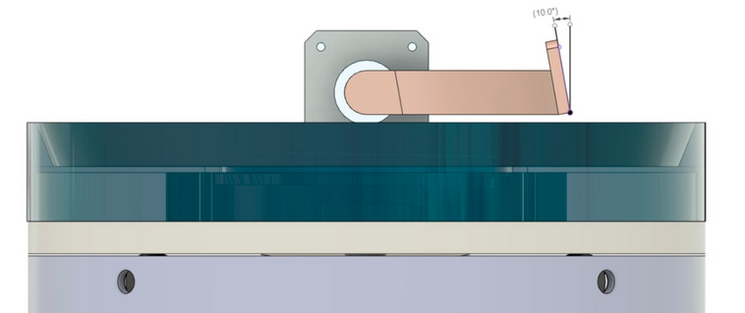

Camera Arm
The Camera Arm is designed in such a way that, at any instance within its range of motion of 180 degrees, it consistently faces the bed. This is achieved through a 10-degree angle tilt.
Introducing our latest innovation in plant disease detection - the scanner! With its omni directional scanning capability, it can detect up to 5 common plant diseases such as rust, measles, and curls just by scanning the leaf. Say goodbye to manual inspection and hello to efficient and accurate detection with our scanner.
